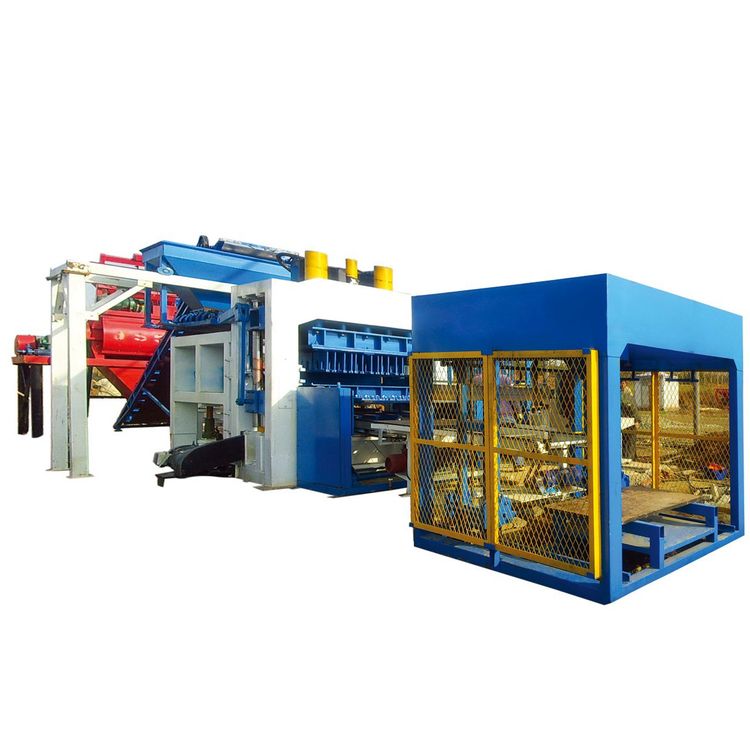

Model: QT4A-15A
Equipment configuration: one host, one hydraulic pump station, one power distribution control cabinet, and two human traction devices
Xinglongyuan Machinery Co., Ltd. is a company engaged in the research, development, production and sales of semi automatic and full-automatic unburned brick production lines, fiber cement tile production lines and asbestos tile production lines.
QT4A-15A automatic brick machine production line equipment has the following characteristics:
1. PLC computer central control integrated circuit realizes all automatic production.
2. Stabilize the accurate work of the ram and the die by using the four bar guide and the long bearing guide.
3. The machine body is made of special steel and special welding process and materials, which is impact resistant and solid.
4. The mold can be replaced quickly, and can produce standard bricks, hollow bricks, pavement bricks, curbs, and other cement floor tiles of different specifications and shapes. This machine can be used for many purposes.
5. The seal is made of famous brand, the hydraulic structure is firm, and the comprehensive technical performance of the equipment is stable, firm and reliable in use.
6. The pure copper core famous brand motor is adopted, and the oil top adopts special oil top, which is conducive to the work of large hydraulic transmission.
Compact structure, mechanical transmission, flexible operation, convenient maintenance, solid and durable.
8. Pressurize up and down, and vibrate vigorously, which is suitable for enterprises to produce load-bearing high-strength bricks.
9. Finished products with high strength, high density, accurate appearance design size, standard shape and regular product, no burr or missing angle.
Utilize solid waste utilization of various waste residues, add fly ash, cinder, etc.
Theoretical production data of QT4A-15A fully automatic brick making machine:
II. QT4A-15A automatic brick making machine defines parameter technology:
Other auxiliary equipment for brick making machine:
Jaw crusher
Jaw crusher is used in the complete set of automatic brick making equipment, and in the technical equipment of the production enterprise to crush materials to achieve the required fineness and particle size. The materials arrive at the entrance of the upper structure and are input into the jaw crusher. Under the work of mechanical centrifugal force, the important gears inside the equipment flow and dance in a fan-shaped way. The wear-resistant lining plates around the rotary table are meteor flying, which is reflected in the cultural impact and collision. The flying materials with high-speed development collide with the gear wheel frisbee and the manganese steel lining plates inside the equipment, and even beat and smash each other, When arriving at the enterprise, the fineness and granularity as well as the information weight and quality will fall off the flight track and be discharged from the discharge port of the equipment. The qualified materials are screened out by multiple cycle hammering and impact analysis.

Product features:
1. The granularity of the product can be adjusted at will, which is not affected by wear of other vulnerable parts;
2. The brick machine production line of the utility model has a long service life and is used in eight directions, which greatly improves the utilization rate, reduces the energy consumption, and effectively reduces the maintenance time;
3. Xinglongyuan jaw crusher is free from jamming and blocking, with excellent performance;
4. Low energy consumption, large output, more power and time saving for the same type of products;
5. Easy maintenance, simple internal structure,
Three bin batching machine
The raw material measuring unit equipment of Xinglongyuan automatic brick machine adopts a three bin batching machine device, which is set according to the production principle and production purpose of the automatic brick machine. The three bin batching machine can avoid manual weighing or volume measurement. The batching bin is characterized by professional weighing, accuracy, fast batching and high automation.
There are belt type and cylinder type batching machines. Xinglongyuan brick making machine mainly adopts belt type batching machine. The upper part of the belt type dosing machine is the dosing hopper, the lower part is the scale, and the bottom is the material conveyor belt. The qualified materials are sent to the batching hopper and measured by the scale. After reaching the expected weight, they arrive at the conveyor belt and are sent to the next link.
blender

The mixer is an indispensable mixing equipment in the production process of the automatic QT4A-15A brick machine production line. The mixer is set at the front of the feeding port of the automatic brick making machine. Before starting the mixer, check whether the equipment is clean and free of sundries. When the mixer is running with power, the internal mechanism rotates at a high speed. It is strictly forbidden for workers to use maintenance tools to probe into the equipment. It is strictly forbidden for workers to walk or watch around the equipment. During equipment troubleshooting, the mixer shall be fixed, all power shall be cut off, and the maintenance warning board shall be set up according to the safety production regulations. The full-time safety officer shall supervise the site, and the physical partition personnel shall not enter the maintenance area.
